Raster charts

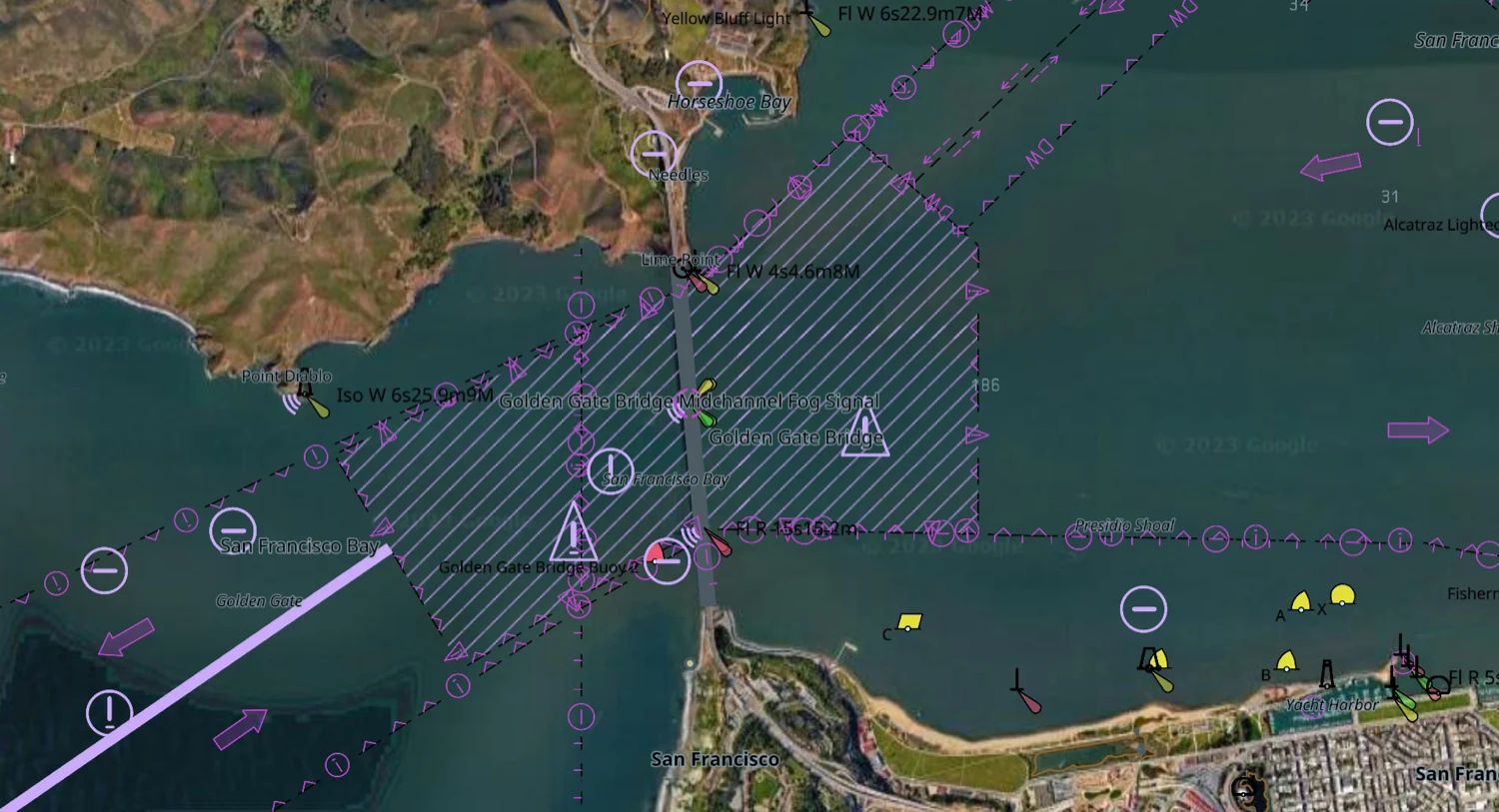

Above: a Google satellite raster chart with an ENC drawn over it. The ENC has dropped its depth and land fills where the raster chart covers, and keeps everything the picture cannot carry — the depth contours, the traffic separation, the buoys, the lights, the soundings and the labels. See Chart over picture.

A raster chart is a chart made of pictures: satellite imagery a mariner supplies as MBTiles, another vendor's chart rendered to tiles, or an RNC from a BSB/KAP sheet.

tile57_raster_chart is a peer of tile57_chart, not a kind of one. It serves tiles and nothing else. It carries no features, so there is no portrayal to run, no pick to answer and no view to render.

Read one

tile57_raster_chart *rc;
tile57_error err;
if (tile57_raster_chart_open("EU-SI-Full.ArcGIS.mbtiles", &rc, &err) != TILE57_OK)
    return report(err.message);

tile57_raster_chart_info info;
tile57_raster_chart_get_info(rc, &info);   /* zoom range, encoding, bounds */

uint8_t *png; size_t len;
tile57_raster_chart_tile(rc, 15, 17631, 11711, &png, &len, &err);
if (png) { draw(png, len); tile57_free(png); }   /* NULL is ordinary: see below */

tile57_raster_chart_close(rc);

The file opens in place. tile57 imports nothing and copies nothing. SQLite reads the file read-only with PRAGMA mmap_size, so the kernel pages the chart in and a half-gigabyte file never becomes resident.

What the reader corrects

SQLite gives the rows. The reader corrects four things that SQLite does not.

The y axis. MBTiles rows count from the south (TMS). tile57 and its callers count from the north (XYZ). The reader inverts the row. Without this every tile is upside down.

The file name. The reader ignores it. Both community charts measured for this page declare minzoom 9, maxzoom 17 and are named Z10-Z18. Do not use the name.

Absent metadata. If the file gives no zoom range or no bounds, the reader calculates them from the tile index. zooms_declared and bounds_declared report the source of each.

The tile size. No field records it. The reader reads it from a picture header. A 512 px set drawn as 256 px is wrong by a factor of two.

Absent tiles are ordinary

tile57_raster_chart_tile gives NULL with TILE57_OK where the chart has no tile. This is a usual result, not a failure. These tile pyramids follow a coastline: about one third of the ground inside their own bounds carries a tile at the deepest zoom. Draw the vector chart alone there.

Scale, and the quilt

info.scale is the compilation scale denominator, or 0.

The scale decides whether a raster chart can quilt. A baked RNC gives a scale and a border polygon, so it composes through the ownership partition by scale band and edition date, as a vector chart does. A community MBTiles gives neither. It reports 0, it owns no ground, and the compositor skips it. This is the rule the compositor applies to a vector chart with no coverage.

Chart over picture

The area fills of a vector chart are opaque. They hide a raster chart below them.

mariner.chart_over_image removes the DEPARE, DRGARE, UNSARE and LNDARE fills. These stay: every depth contour with the emphasis of the safety contour, every point symbol, the lights and their sectors, the soundings, the text, and every boundary drawn as a line or a pattern.

tile57 png ENC_ROOT --over-image --view -76.4767,38.9763,15 -o chart.png

The mode removes the colour bands that show which water is safe. Only the safety contour then carries that information. Show the mariner that the mode is on.

The mode also engages the S-52 §10.3.4.2 DisplayPlane precedence. The clause applies when an image is below the chart. radar_overlay keeps its own meaning. Both satisfy the same condition.

tile57_mariner_image_dim gives the dim factor for the colour scheme. A daylight photograph at full brightness removes the dark adaptation that the dusk and night schemes protect.

A GPU host can do this per pixel instead

tile57_gpu_scene gives each range a depth in (0,1) from its paint order: range i of N gets (N-i)/(N+1), so a later range is nearer. The opaque area fills paint first and are therefore the farthest ranges in the scene.

A host can draw the raster chart's tiles into the depth buffer at a depth between the last opaque area range and the range after it, with depth write on. The fills then fail the depth test where a tile covers them, and pass everywhere else. The vector chart keeps its shading outside the raster chart's coverage and around every hole in it, with no rebuild and no scene-wide switch.

mariner.chart_over_image is for the outputs that have no depth buffer: _png, _pdf and _canvas.

Inspect one

tile57 raster info <chart.mbtiles>

It prints what the chart declares beside what its name claims:

  zoom         9..17
  encoding     jpeg
  tile size    256 px
  row origin   tms
  tiles        5114
  bounds       13.359375,45.089036,14.062500,46.073231
  scale        none declared (owns no ground; cannot quilt)

  the NAME claims zoom 10..18. The file says 9..17. Believe the file.

BSB/KAP

raster.bsb reads a BSB/KAP sheet: the header, the palette, the run-length raster and the georeferencing.

Calculate the georeferencing with fitRefs, from the REF control points of the sheet. Do not use the published PWY polynomial for latitude. On the 1:10,000,000 North Pacific sheet it misses its own control points by 0.069°, about 7 km, because a low-order fit in pixel space cannot follow Mercator across 56° of latitude.

The fit is ellipsoidal. NOAA sheets are NAD83/GRS80, and the spherical form leaves 37 times the residual.

The fit is bivariate: both pixel axes feed both outputs. NOAA publishes skewed plotting sheets, such as KNP/SK=31.1461111 on Newport-to-Bermuda. A fit of x to longitude and y to latitude misses that sheet by 0.9°.

Header.dtm_lat and dtm_lon give the datum shift in arc seconds. KNP/GD gives the datum. Apply the shift. Older sheets are NAD27, about 40 m from WGS84 on the US east coast, and an unshifted sheet reads as a chart error against a GPS position.

Bake a sheet

tile57 bake <chart.KAP | BSB_ROOT> -o <out-dir>

This writes the same structure the ENC bake writes: one archive per sheet under <out>/<STEM>/<STEM>.pmtiles, and the ownership partition in <out>/partition.tpart. The tiles are PNG instead of MLT, and the metadata carries the sheet's own coverage, compilation scale and edition date. A baked sheet opens with tile57_raster_chart_open like any other raster chart.

Each sheet contributes three facts a community MBTiles has none of:

from	fact
PLY	the border polygon, which stands in for M_COVR
KNP/SC	the compilation scale, which places the sheet in a band
CED	the edition date and revision, the tie-break between two sheets of the same scale

The border cuts the paper collar off. Two sheets of the same area meet at their neat lines, and neither prints over the other's margin.

The zoom range runs from z0 to the zoom whose ground resolution matches the sheet's own pixel. A 1:10,000,000 ocean sheet reaches z7; a 1:1,058,400 plotting sheet reaches z10. Baking deeper would invent detail the survey never had, so a host that wants a closer look magnifies the top level.

A sheet whose fit cannot reproduce its own control points is refused, and the bake says which sheet and why. The tolerance is in source pixels, so it means the same thing on a harbour plan as on an ocean sheet.

Quilt them

tile57_compose *c;
tile57_compose_rasters(charts, n, &c, &err);

uint8_t *png; size_t len; bool owned;
tile57_compose_tile(c, 12, 654, 1583, &png, &len, &owned, &err);

Ownership resolves exactly as it does for vector charts: the same compilation scale bands, the same date tie-break, the same partition. Sheets that declare no scale or carry no coverage are skipped, which is the rule tile57_compose_open already applies.

A raster compositor serves tile57_compose_tile and returns TILE57_ERR_UNSUPPORTED from _png, _pdf, _canvas, _surface, _labels, _query and _gpu_scene. A chart made of pictures portrays nothing.

One compositor holds one kind. Composing raster charts stacks pictures where composing vector charts clips geometry, and the two paths share the ownership partition and nothing above it. tile57_compose_open reports TILE57_ERR_UNSUPPORTED for a picture archive. A host showing an RNC quilt under a vector quilt opens two compositors, which is what the mariner wants: two layers, not one blended chart.
