The Linux host (GTK4)

This host is a native GTK4 shell in C. It contains the Zig chart core. The core uses raw Vulkan (src/gpu_vk.zig) to draw into a surface, and the compositor shows that surface. This host is the equivalent of the SwiftUI shell on Apple platforms and the Java shell on Android. All three hosts use the same core, the same C ABI, and give the same behavior.

The left side of the headerbar has the open control, the recents list, the zoom controls, the fit control, and the north-up control. The right side has the search control, the display menu, and the settings control.

The chrome floats above the chart. The HUD bar shows the coordinate of the pointer, or the coordinate of the center. It also shows an amber overscale badge when the view is finer than the data permits, then the scale, the zoom, and the scheme. The zoom buttons and the compass are above the corners of the chart.

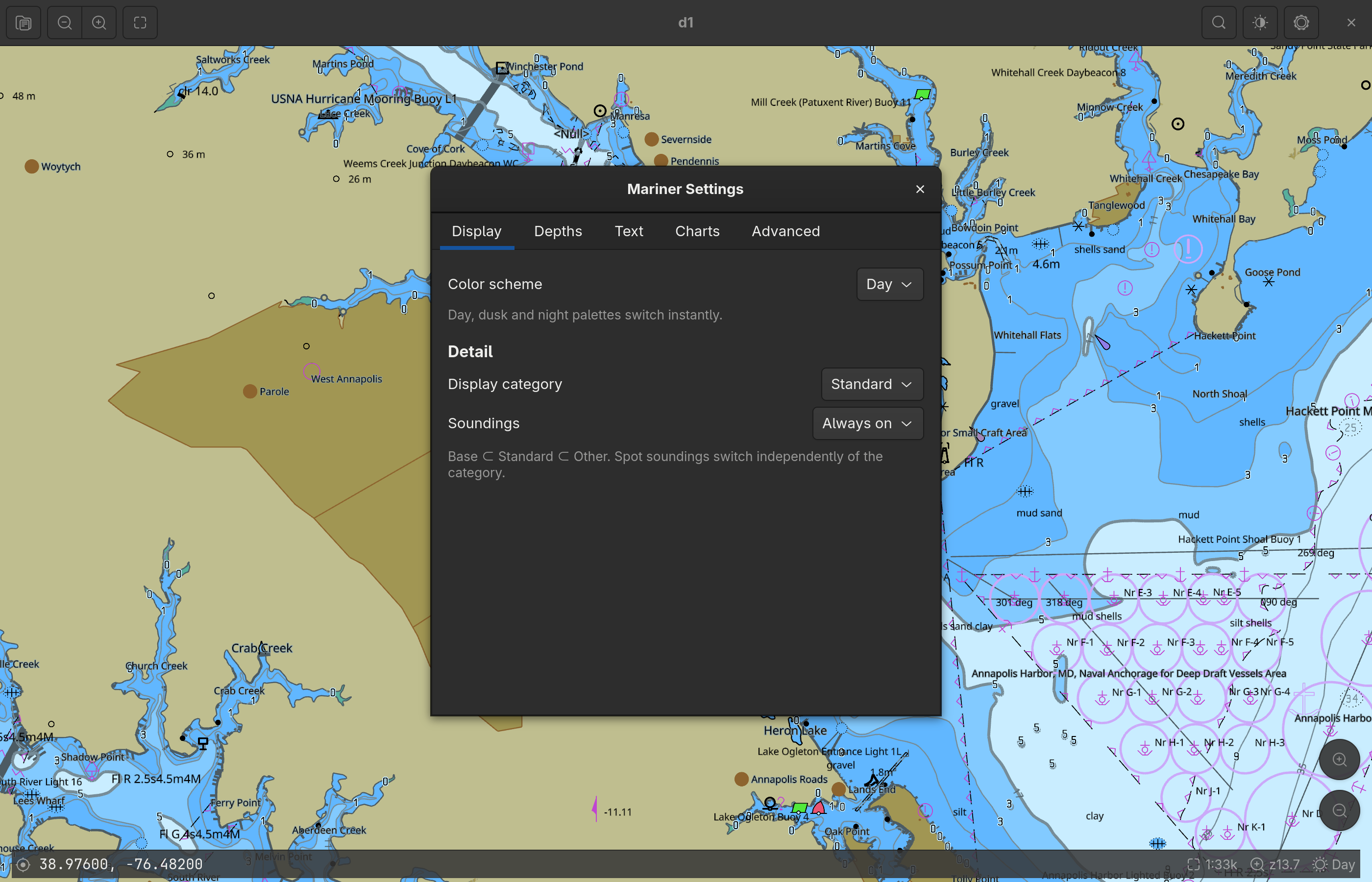

The full mariner panel is a separate window. Press Ctrl+, to open it. The panel is not modal, and the chart stays usable while the panel is open. The panel applies each edit after a short delay, and it keeps each value.

How the chart gets onto the screen

This part of the host is different from the other hosts. Three designs were necessary to get a correct result.

GTK does not draw the chart. Vulkan draws the chart into its own Wayland subsurface. The host puts that subsurface below the GTK window. The chart widget (LkChartView) then draws nothing. The widget leaves its area fully transparent. The area is a hole in the window, and the compositor shows the chart through the hole. GTK draws all of the other widgets above the hole in the normal way.

  compositor stacking          GTK window buffer (RGBA)
  ┌──────────────────────┐     ┌──────────────────────────┐
  │  GTK window  (top)   │ ──▶ │ headerbar   (opaque)     │
  │                      │     │ ╌╌╌ chart area ╌╌╌       │  <- transparent hole
  │                      │     │ HUD bar, zoom (opaque)   │
  ├──────────────────────┤     └──────────────────────────┘
  │  chart subsurface    │
  │  (Vulkan swapchain)  │
  └──────────────────────┘

This design gives two results:

• The compositor shows the chart directly. Therefore the chart is sharp. This is also true on a display that uses a fractional scale, because the compositor makes the final size change in one step.
• GTK keeps control of its own stacking. Therefore the chrome floats in the same way as on macOS and iPad. The chart widget is the base of a GtkOverlay. The HUD, the zoom buttons, and the compass are overlays above it. This is normal GTK behavior.

Input needs no special code on this path. The hole is still part of the GTK window. Therefore the compositor sends the pointer events and the key events to the window. GTK sends them to the gesture controllers of the chart widget. The controllers then call the core (lookout_pan, lookout_zoom_at_logical, and others). The core returns its readouts through the controller to the app model, and the HUD shows them.

The two earlier designs

Both of the earlier designs worked. Each one failed one of the two requirements above.

Design 1: the subsurface above the window. This design put the subsurface above the GTK window. The chart was sharp. However, a subsurface composites above the full widget tree. Therefore GTK could draw nothing above the chart. The HUD became a status bar below the chart, and the zoom controls moved into the headerbar. The surface also had to pass input through. On Wayland it needed an empty input region. On X11 it needed event_mask = 0.

Design 2: the chart as a GdkTexture. The core drew the chart offscreen. Then the core exported the frame as a dmabuf. It used VK_EXT_image_drm_format_modifier and VK_KHR_external_memory_fd. GTK imported the frame as a texture node in its scene graph. The chrome floated correctly, and the pixels stayed on the GPU. However, GTK then resampled the frame when it composited the frame into a window that uses a fractional scale. The result was visibly soft. No render density corrected this problem. The native scale, an integer scale of 2, and a 2x supersample with a box filter were each soft.

Design 2 also had a problem on a machine with two GPUs. The core had to use the GPU that drives the display. The discrete card cannot import a dmabuf that the integrated GPU exports, because the integrated GPU uses a private tiling format (Y_TILED_CCS).

Design 2 is removed. One part of it remains in the core: the offscreen Vulkan device selects a discrete GPU first. This is still the correct default.

Rendering

The core makes the Vulkan instance, the device, and four pipelines (chart, sprite, SDF, and pattern) from precompiled SPIR-V. The core opens with LOOKOUT_NATIVE_WAYLAND_SURFACE or LOOKOUT_NATIVE_X11_WINDOW. Then the core draws into a swapchain with 4x MSAA. The core is a static library, and it does not load the Vulkan loader. Therefore this executable links libvulkan.

The chart stays a vector image until the rasterizer draws it. tile57 tessellates the S-57 geometry one time. Each frame is then a uniform update. The vertex shader applies the camera, the palette, and the SCAMIN limits. The core does not make a bitmap of the chart and does not cache one.

The render loop runs only when it is necessary. It is the equivalent of the display link on macOS. A GTK frame-clock callback runs while an animation is active or while the scene is not clean. The callback removes itself when the chart is static. Therefore a static chart uses no CPU time. All of the code runs on the main thread, because the engine permits only one thread and GTK requires the main thread.

Prerequisites

• GTK 4.10 or later, the Vulkan headers, a Vulkan loader, and the X11 or Wayland client libraries.
• Zig 0.16 on PATH. meson and ninja.

sudo apt install libgtk-4-dev libvulkan-dev libx11-dev libwayland-dev \
                 meson ninja-build          # Debian/Ubuntu
sudo pacman -S   gtk4 vulkan-headers vulkan-icd-loader libx11 wayland \
                 meson ninja                # Arch

tile57 is not a prerequisite. It is a Zig package dependency of the core. If a sibling ../../tile57 checkout is available, the build uses it. If it is not available, the build gets the commit that ../build.zig.zon specifies.

Build and run

cd linux
meson setup build
ninja -C build
./build/lookout-marine

meson runs build-core.sh. That script runs zig build lib -Dbackend=vk. Then it copies liblookout_marine.a, libtile57.a, lookout.h, and tile57.h into the build directory. The core is always ReleaseFast. Use -Dcore-optimize=Debug if you must debug the core. The app must hold 60 fps, and a Debug core loses frames.

You need a baked .pmtiles chart. Use Open in the headerbar to select a folder of cells. At the first start, the app looks for $LOOKOUT_OPEN. Then it looks for the most recent chart. Then it looks for ~/.cache/chartplotter/NOAA/tiles/d5/US5MD1MC.pmtiles. Set $LOOKOUT_VIEW="lon,lat,zoom[,rot]" to select the first camera position.

The files

File	Function
src/main.c	The GtkApplication entry point, the CSS, and the accelerators
src/lk-window.c	The window: the headerbar, the chart, the status bar, the actions, and the open dialog
src/lk-chart-view.c	The chart widget. It owns the surface, the transparent hole, and all input.
src/lk-chart-controller.c	The one lookout* handle, every lookout_* call, and the render loop
src/lk-native-surface.c	The X11 child window or the Wayland subsurface that the chart draws into
src/lk-app-model.c	The shared state, the recents, the open paths, and the coordinate parser
src/lk-hud.c	The status-bar readouts, the identify panel, and the DMS format
src/lk-search.c	The coordinate go-to function. Feature search is not complete.
src/lk-mariner.c	The live tile57_mariner behind the settings form
src/lk-settings-window.c	The mariner panel (Display, Depths, Text, Charts, Advanced)
src/lk-store.c	The camera position, the recents, and the settings in one XDG keyfile
build-core.sh	It builds the Zig core where meson expects the outputs.
screenshots.sh	It makes the documentation screenshots. Refer to the protocol.

Cautions

• Two GPUs. The offscreen Vulkan device selects a discrete GPU first. The device that draws to the screen must be able to drive the surface. The loader lists that device first for a surface instance.
• X11 deprecations. GTK 4.18 deprecated the full X11 backend API and supplied no replacement. Therefore the X11 code builds with two warnings (gdk_x11_display_get_xdisplay and gdk_x11_surface_get_xid). These two functions are the only way to get the X window of a GdkSurface. The warnings stay visible for this reason.
• The Wayland swapchain size. A Wayland surface reports an undefined currentExtent. Therefore the core calculates the swapchain size from the points and the density that the host declares. It does not use the surface size.
• The swapchain color format. The palette gives the shader colors that are already sRGB. An _SRGB swapchain would encode them a second time, and the chart would look too pale. Therefore the core selects a UNORM order first, then any format that is not _SRGB.

Work that is not complete

• Feature search and place-name search. The coordinate go-to function works. Name search is not complete, and the control shows "coming soon". It needs a name index in tile57 and a new lookout_* query. We do not show false results.
• The desktop entry, the icon, and the packages. The build installs only the executable.
• Automatic input tests on Wayland. No tool here can send events to a compositor. The fling gesture, the rotate gesture, the identify function, and an integer scale above 2 also have no automatic tests.
